The Full Metal Bracket for G line on steroids is a Clamp-on + bolt on (6xM5 bolts in total) for G line MK5 specs will be availlable when it's made...no date yet

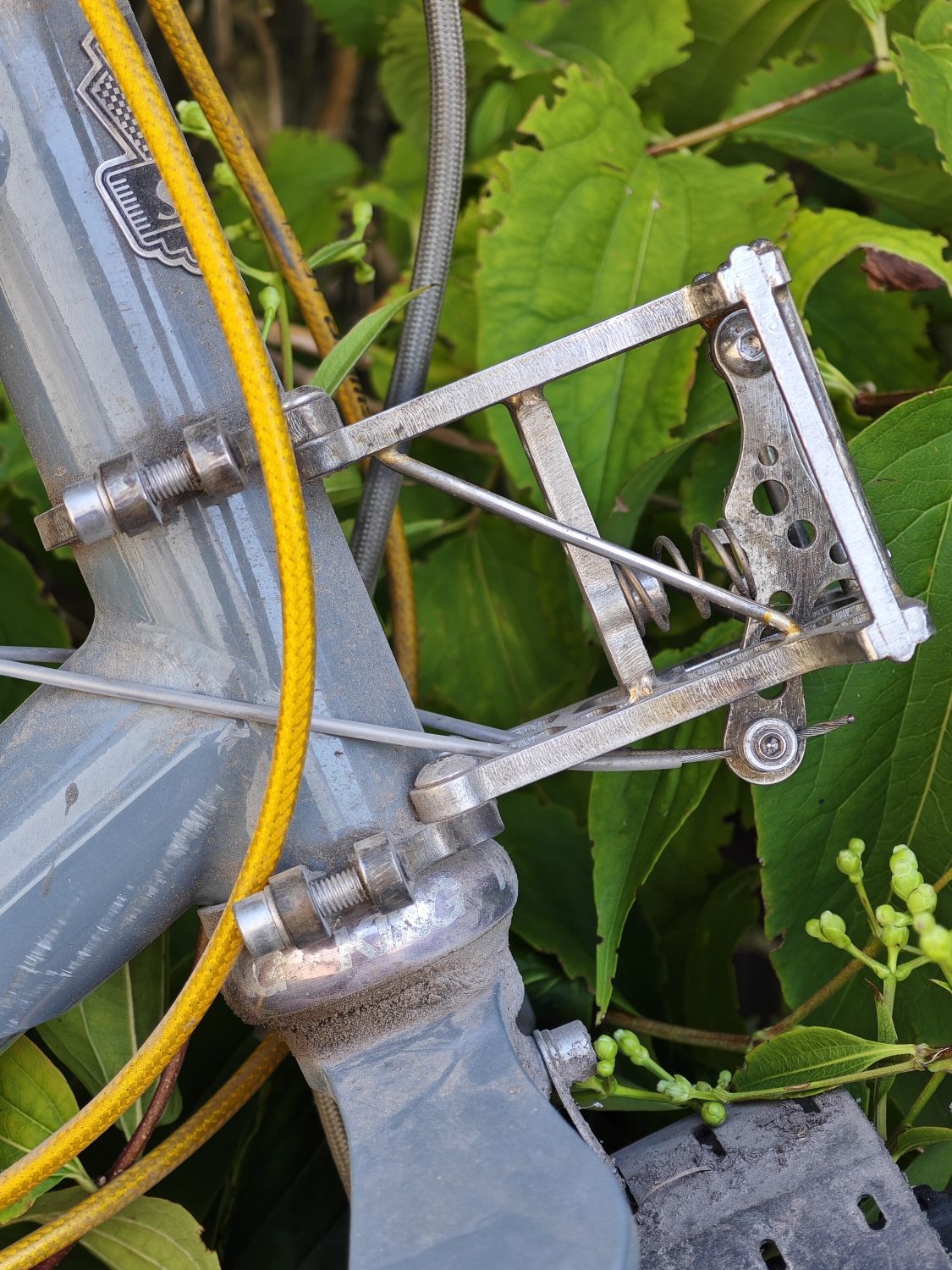

Photos shown are just to get an idea...it will be like the regular FmB but with two clamps, one at the top and one at the bottom. Also the clamps will be a little more sturdy just like on the photos above. It can be used with just the clamp or additionally with the two regular bolts that are screwed into the headtube (using the Headtube fixer for max amount of steroids!)
Note: Fill in your email address if you would like to get a back in stock notification email with a link to this product. If I put a small quantity up for sale you will get a notification email, but if it's sold out before you had a chance, you have to subscribe again. It works only one time, unhandy but that's the way it works...
Tech tip: don't apply tape to your headtube to protect the paint. The Full metal Bracket might slip and rotate due to side impacts and road vibrations and will need a much higher torque than when mounted without tape. I will include a bit of carbon assembly paste for added friction and lower torque. Apply torque evenly (keep an eye on the bolt ends), diagonally and moderately until it doesn't slip anymore when giving the bag a push sideways. This way you'll end up with the lowest possible torque which will save your paint from cracking and the clamps from bending or worse.
Material: 5 mm stainless steel AISI 304 Stone tumbled RAW uncoated, Tig fusion pulse welded and silver (56%) brazed, final finish: polished
Hardware: A2 quality stainless steel hardware for the latch hinge and clamp, stainless steel spring made in Sweden
Weight: 250? gram
Remote: Full metal Remote, 1,1 mm Stainless steel cable
Load capacity: more than you can handle, check the reel on my Instagram account where I (75kg+) stand on a 11kg vice which is hold by the FmB
The assembly instructions in the video below don't apply to the clamp-on version. You don't have to take the clamp-on version apart prior to installing it. But it gives a good understanding of the product as it's quite similar.
