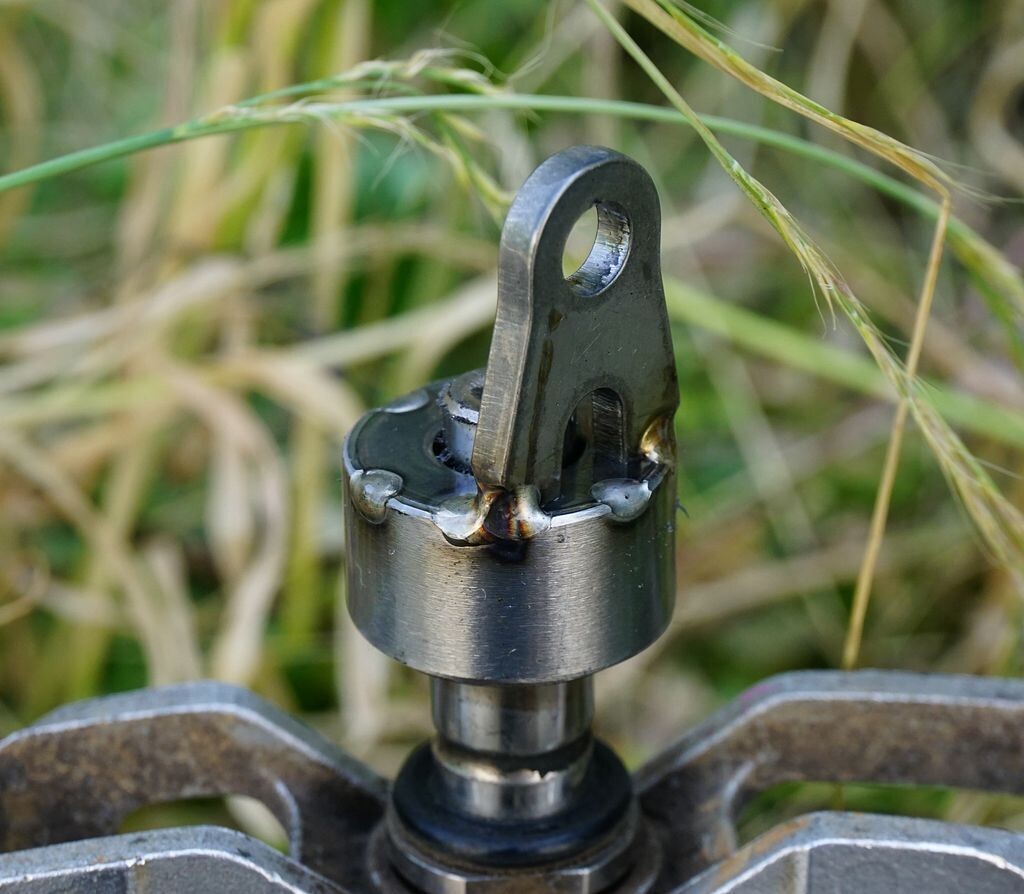

The Eerder metaal Xplorer Mk2 Magnetic EZY pedal holder fits the MKS Superior pedals with an axle end of 8.9mm and is also available in a version for the Ezy (non superior) 9.9mm axles. The EZY superior version also works with the orignal Brompton G line pedal, see photos above.

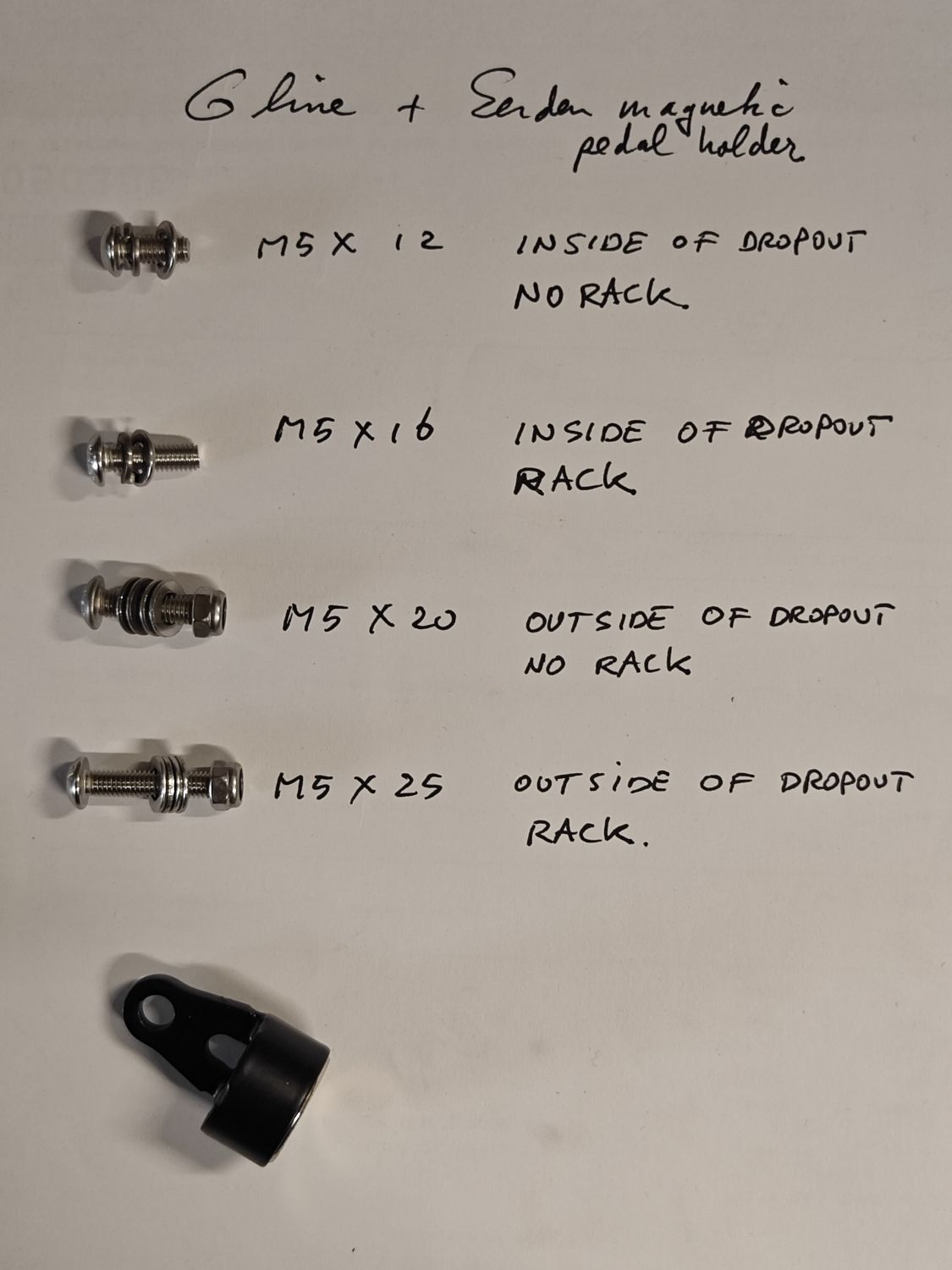

This Mk2 version is designed to fit all Bromptons and the Eerder Xplorer bike and can be bolted to the left dropout at the eyelet for the mudguard stays / rear rack stays or on the G line also to the top rack mounting point on the seatstay or to the dropout.
The advantage of the the horizontal mounting position at the dropout (opposed to the vertical position at the seatstay of the G line) is that if you leave the pedal in the holder while unfolding, the pedal will not fall out. This can happen with really wild unfolding in the downward position.
Note: Wellgo pedals, see last photo, work just fine with these magnetic pedal holders, no changes needed. It will have a bit of play on the hexagonal section, but not noticeable as it's centered and hold on the conical bit. Pedals from Wellgo, Rockbros, Brompton G line share the same hex shape axle. Quite different from the MKS design but it works with the magnetic pedal holders just as fine.
Specs:
- Materials: Tig fusion welded Domex420 Steel and Chromo 0.9mm tube
- Neodymium magnet with 80 N hold force (8 kg )
- Finish: Black or Clear powdercoat
- Weight: 34gr (the magnet can influence the measurement of your scale, so if you want to check it, put a piece of wood on the scale first :)
