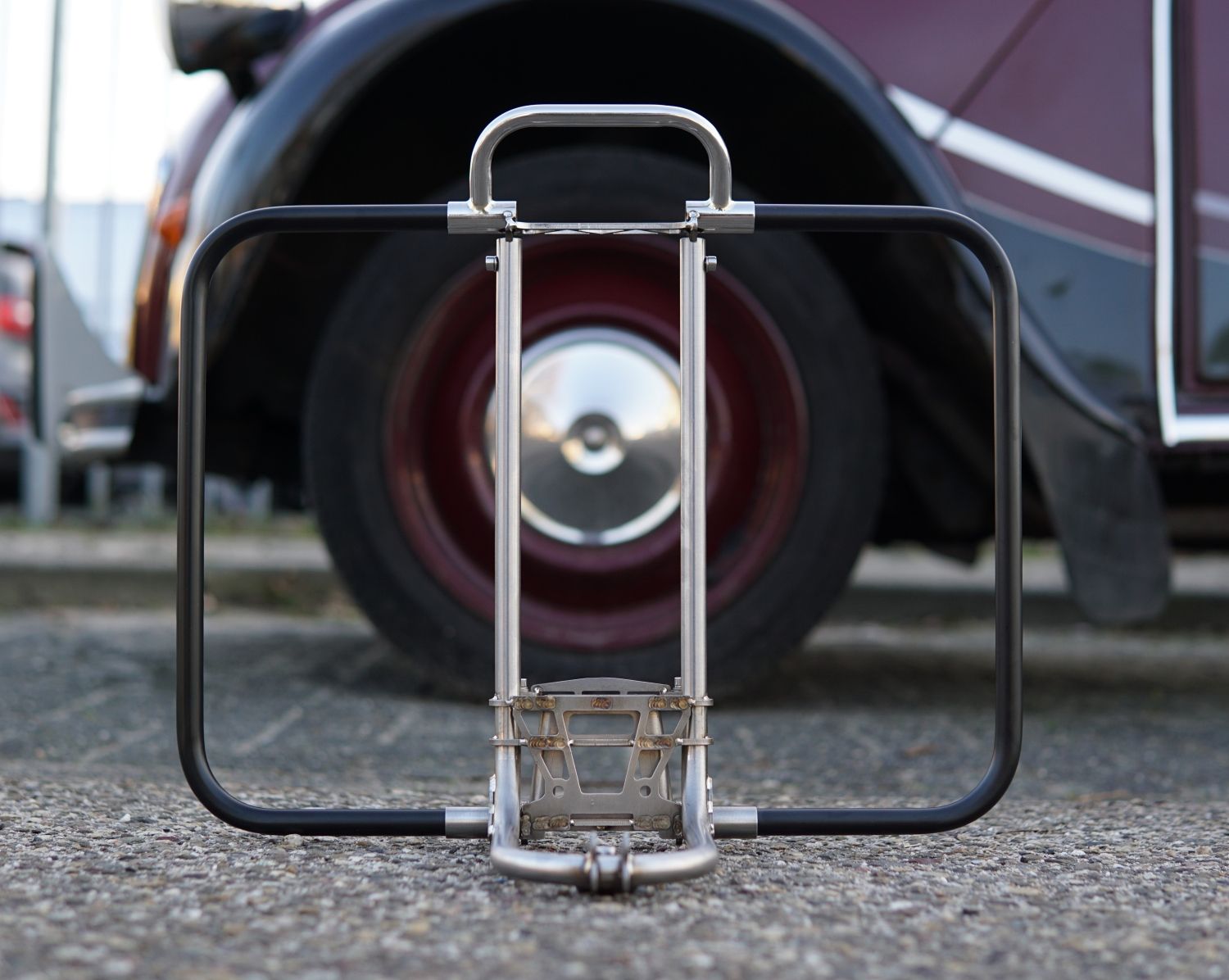

Modular stainless steel luggage frame for the Brompton front luggage system featuring a long bottom section for the perfect support of your bag or load and providing a solid stand so it doesn't tip over when put on the ground.
It's designed around the Full metal Clamp which is compatible with the plastic Brompton front carrier block and the Eerder Full metal Bracket and gives a play-free fit. Other thrid party front carrier brackets may fit, but are not tested and are most likely not giving the play-free fit.
This particular version of the Full metal Frame has 1/2" connections which makes it compatible with the parts of the original Brompton front luggage frame and the Trigo frame. You can use the 1/2" aluminium tubular sides (lateral tubes) of it and the plastic handle, to get the lightest and most affordable version. Or you go with the optional stainless steel handle (same weight as the plastic handle) and use just the aluminium sides of your Brompton or Trigo luggage frame. And if you want to go for maximum strength and stifness for heavy duty applications you can opt the Cromoly tubular sides. Which are delivered uncoated for a perfect fit into the base unit. You can use some boiled linseed oil or melt wax as protection against rust. Or just appreciate the brown patina it will eventually get or tape it with a nice thin bar tape, be creative!
Weight:
- Base center section full stainless steel: 490 gr
- 10mm stainless steel tubular handle: 94 gr
- Plastic handle by Brompton: 86 gr
- Tubular sides Aluminium by Brompton: 109 gr
- Tubular sides Aluminium by Trigo: 96 gr
- Tubular sides Chromoly steel 0.9mm wall thickness: 282 gr
- short light mount extender incl hardware: 24 gr
- long light mount extender incl hardware: 28 gr
- Volt / Ampp light mount: 19 gr
- Base unit + steel handle + aluminium sides: 692 gr
- Base unit + steel handle + Chromoly sides: 869 gr
- Brompton front luggage frame (aluminium + plastic): 394 gr
- Brompton classic hand brazed steel luggage frame (discontinued long ago): 688 gr
