Expected May 2023

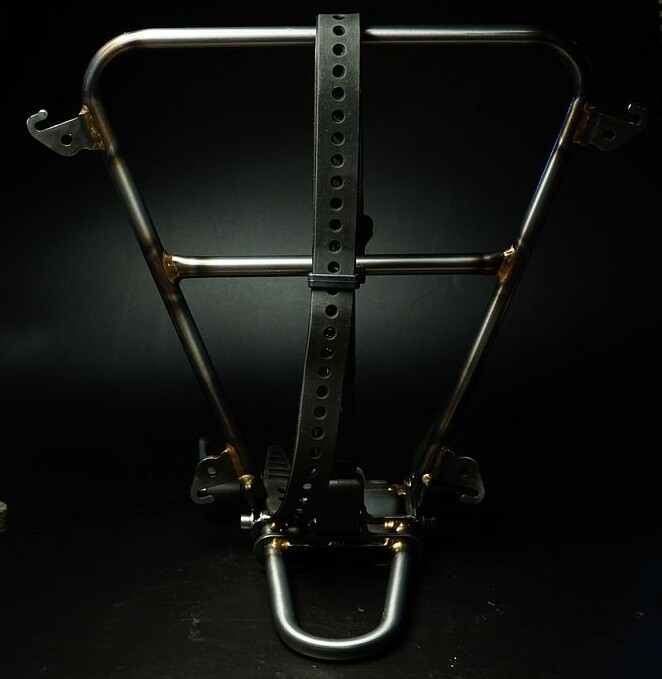

THe MK2 Tombstonerack is a further refinement of the Mk1, but they share a lot of details. The MK2 has little levers for easy adjustment of the platform angle. The four eyelets on the side now have strap hooks incorporated. The braces on the female carrier part have slots for Voilé straps. The two hooks on the corners of the platform have been optimised for Voilé straps and bungee hooks
The Eerder metaal #Tombstone rack for the Brompton front carrier block (FCB) can be used on all Bromptons and it's conversions like the Xplorer bike. When combined with the #Seatposthugger it can be used at the back too. The platform is adjustable as the angle of the carrier block is mirrored when used at the back. Also when used at the front you can choose wether you want the platform to be horizontal for big objects to clear the handlebar or angled up to get the load closer to the frame for a more stable ride with heavier objects.
Max load recommended at 10-15 kg. (It's tested up to 35kg at the front)
Powdercoated with clear coat so over time a patina may develop underneath the coating. Through the coating you can see the brazes and the discoloration of the heat input. Every item is unique.
All racks are numbered
Material used: Chromoly 4130 tubing 10x0.8mm and Domex 700 steel for most of the laser cut parts
Weight: 506 grams
